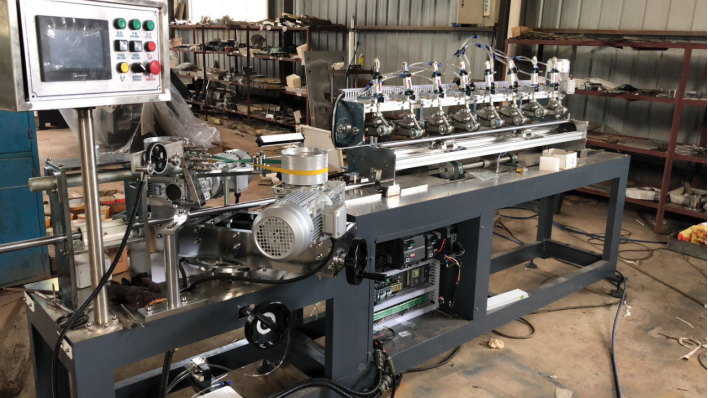

 High speed Paper Straw Making Machine

High-speed Paper Straw Machine

1.  Machine adopts PLC control (Japan IDEC), frequency control (Taiwan Shihlin), all data can be display in the touch screen.

2.  With online multi-cut blades, Servo motor synchronism (Taiwan Shihlin) tracking cut, no need secondary cutting, save labor and time.


Technical Parameter

Specification

Number of roller 3

Tube diameter 4.7-12mm

Tube wall-thickness 0.5-2mm

Winding speed 35-50m/min

Cutting system Servo motor synchronism tracking cut Multi-blades cutting system

Gluing way Single/Double sides

Power 380V/3Phase/50Hz

Operator 1 person

3 Layers 3 Layers

Belt 3

Mandrel Shaft 2

Measurement 3500*1500*1200mm

Weight 1300kgs

Working Space 6000*4000mm

Main Motor 1.5W*2
